L6系列增压泵

发布时间: 2019-06-05 15:43

L6系列常用型号：10-6000W003,10-6000W005,10-6000W010,10-6000W015,10-6000W020,10-6000W030,10-6000W050,10-6000W080,10-6000W100,10-6000W151,10-6000W201,10-6000W301,10-6000W402,D6000B005,D6000B010,D6000B020,D6000B025,D6000B035,D6000B055,D6000B095,D6000B145,D6000B180,D6000B240,D6000B330,D6000B460,D6000B740

商品信息

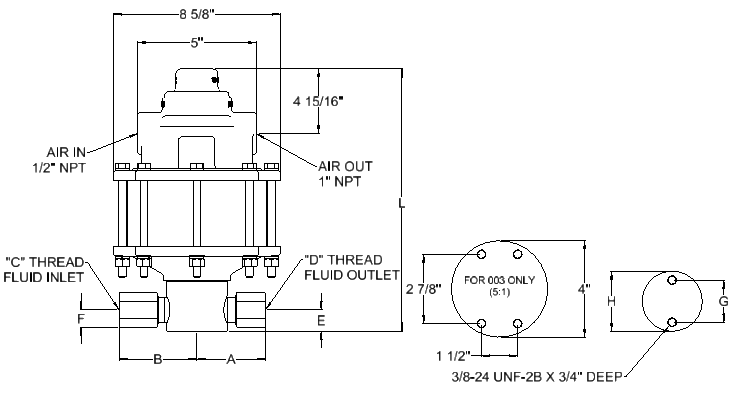

D6 Series Model (Ratio)	10-6 Series Model	L	A	B	NPT/HF4 (Std)		SAE/HF4 (Optional)		E	F	G	H
D6 Series Model (Ratio)	10-6 Series Model	L	A	B	C Thread	D Thread	C Thread	D Thread	E	F	G	H
5	003	19.625	4.875	2.375	1"	1"	-	-	1.5	2.5	---	4
10	005	18.625	4.75	4.375	1"	1"	-	-	1.375	1.375	2.375	3
20 thru 35	010 thru 020	17.063	3	4	1"	1/2"	-	10 SAE	1.000	1	1.75	2.5
55 thru 180	030 thru 100	15.750	3	3.375	1/2"	1/2"	10 SAE	10 SAE	0.875	0.875	1.75	2.5
240 thru 330	151 thru 201	16.000	2.5	2.313	3/8"	3/8"	-	9/16"-18 *	0.875	0.875	1.75	2.5
460	301	16	3.75	2.313	3/8"	9/16"-18 *	-	-	0.875	0.875	1.75	2.5
740	402	16.25	4.25	2.313	3/8"	9/16"-18 *	-	-	1.125	1.125	2.375	3

* Coned and threaded high pressure connection for 1/4" O.D. tubing.

D6 Series Model (ratio)	10-6 Series Model	Hydraulic Piston Diameter (in)	Hydraulic Piston Area (in2)	Volume per Stroke (in3)	Air Pressure (PSI)
D6 Series Model (ratio)	10-6 Series Model	Hydraulic Piston Diameter (in)	Hydraulic Piston Area (in2)	Volume per Stroke (in3)	10	20	30	40	50	60	70	80	90	100
5	003	3	7.07	17.7	50	100	150	200	250	300	350	400	450	500
10	005	2.125	3.56	8.9	85	185	285	390	490	590	690	795	900	1000
20	010	1.438	1.62	4.05	165	425	650	875	1075	1300	1550	1750	1950	2150
25	015	1.315	1.35	3.38	180	450	725	1000	1300	1550	1850	2125	2400	2700
35	020	1.125	0.994	2.49	250	625	1025	1400	1800	2150	2500	2850	3250	3600
55	030	0.875	0.601	1.5	450	1050	1700	2275	2900	3500	4100	4650	5200	6000
95	050	0.688	0.371	0.928	750	1750	2800	3700	4750	5900	6875	7700	8750	9700
145	080	0.563	0.249	0.623	1100	2600	4200	5550	7100	8500	10000	11500	12950	14400
180	100	0.5	0.196	0.49	1500	3200	5200	7100	9000	10800	12500	14500	16300	18000
240	151	0.438	0.15	0.375	1900	4400	6900	9100	11600	14000	16400	18800	21300	23700
330**	201**	0.375	0.11	0.275	3000	6000	9500	12600	16000	19100	22300	25600	29000	32300
460**	301**	0.313	0.077	0.193	4000	8800	13700	18000	22500	27000	31500	36500	41400	45800
740**	402**	0.25	0.049	0.123	6000	13000	21000	27000	34000	40500	46000	52000	59000	65000
