L5系列增压泵

发布时间: 2019-06-05 15:07

L5系列常用型号10-5000W003,10-5000W005,10-5000W007,10-5000W010,10-5000W015,10-5000W018,10-5000W020,10-5000W030,10-5000W040,10-5000W045,10-5000W060,10-5000W080,10-5000W100,10-5000W160,10-5000W250,10-5000W350，D5000B005，D5000B010，D5000B012，D5000B020，D5000B025，D5000B030，D5000B035，D5000B055，D5000B070，D5000B085，D5000B105，D5000B140，D5000B195，D5000B280，D5000B440，D5000B555

商品信息

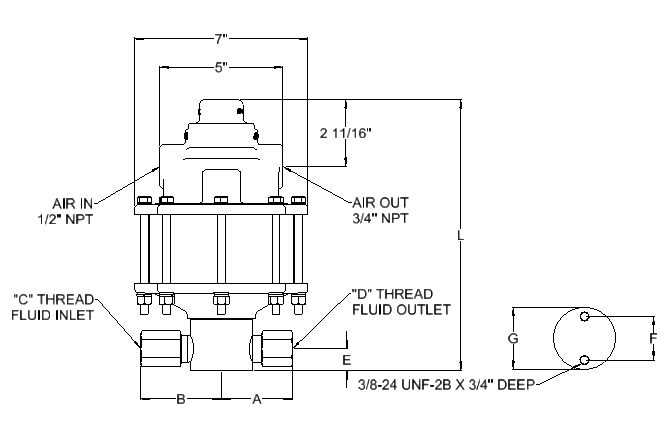

D5 Series Model (Ratio)	10-5 Series Model	L	A	B	NPT/HF4 (Std)		SAE/HF4 (Optional)		E	F	G
D5 Series Model (Ratio)	10-5 Series Model	L	A	B	C Thread	D Thread	C Thread	D Thread	E	F	G
5	003	13.125	3.5	4.75	1"	1/2"	-	10 SAE	1.125	2.375	3.125
10 thru 20	005 thru 010	12.313	3	4	1"	1/2"	-	10 SAE	1.000	1.75	2.5
25 thru 105	015 thru 060	10.875	3	3.375	1/2"	1/2"	10 SAE	10 SAE	0.875	1.75	2.5
140 thru 440	080 thru 250	11.250	2.5	2.313	3/8"	3/8"	-	9/16"-18 *	0.875	1.75	2.5
555	350	11.188	3.75	2.313	3/8"	9/16"-18 *	-	-	0.0875	1.75	2.5

* Coned and threaded high pressure connection for 1/4" O.D. tubing.

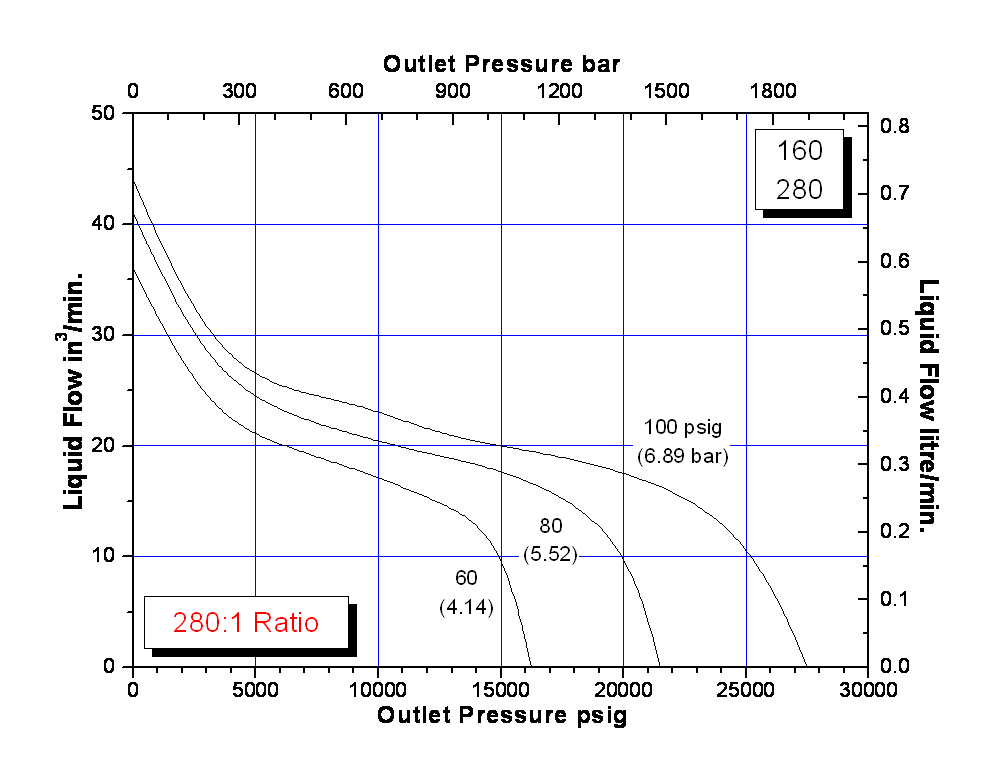

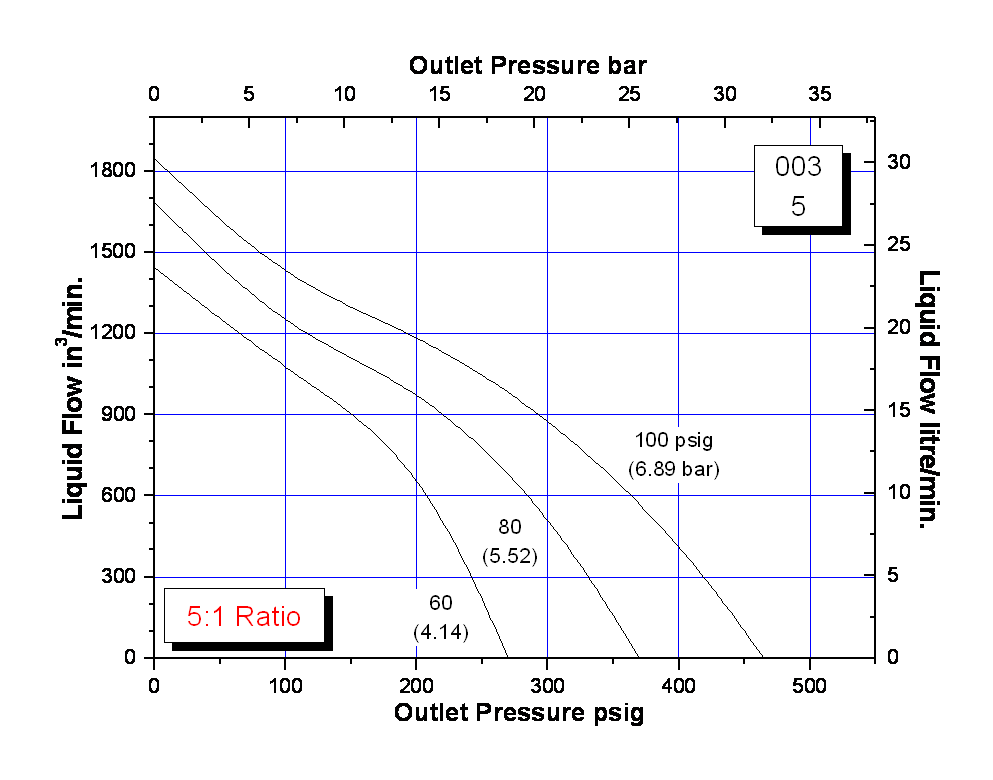

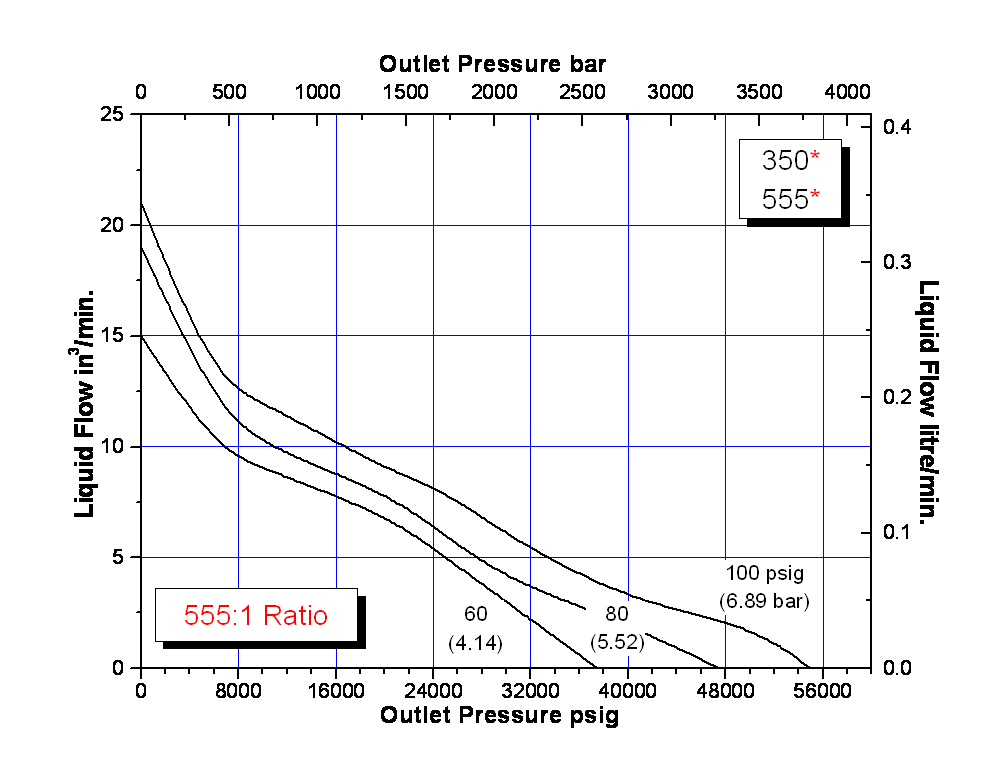

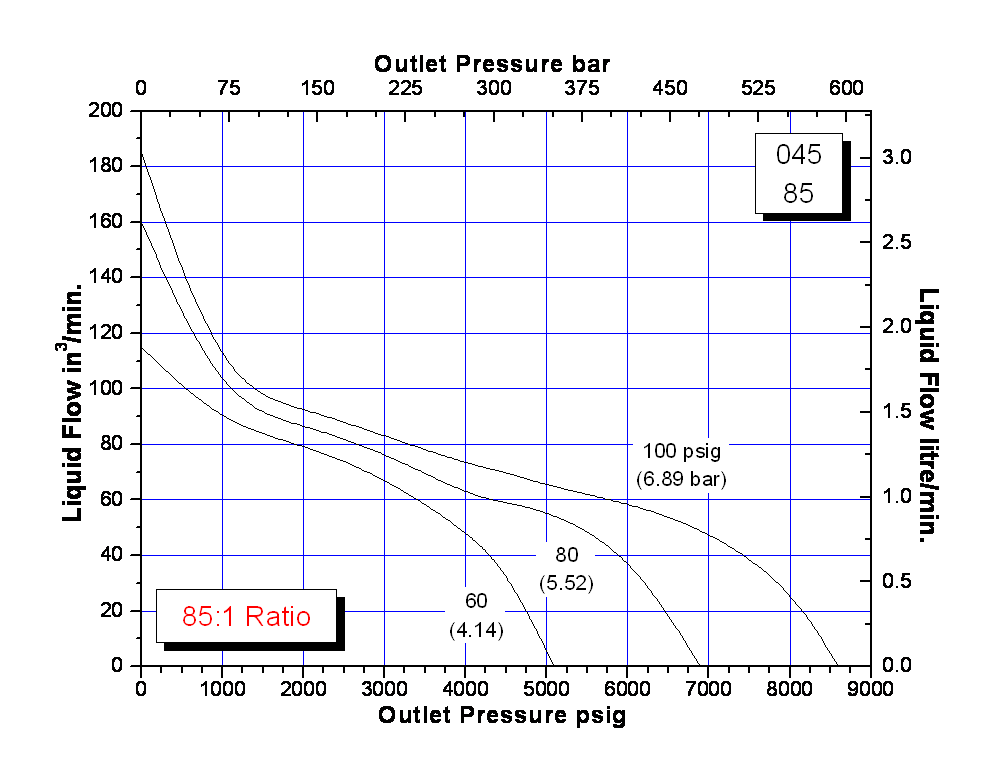

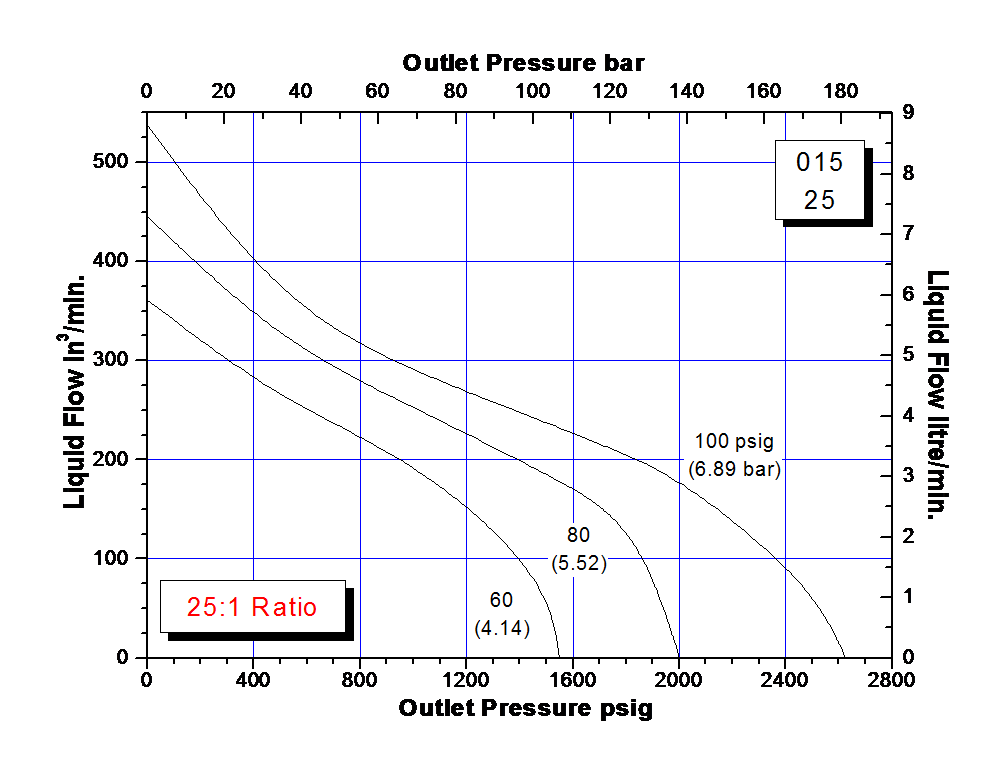

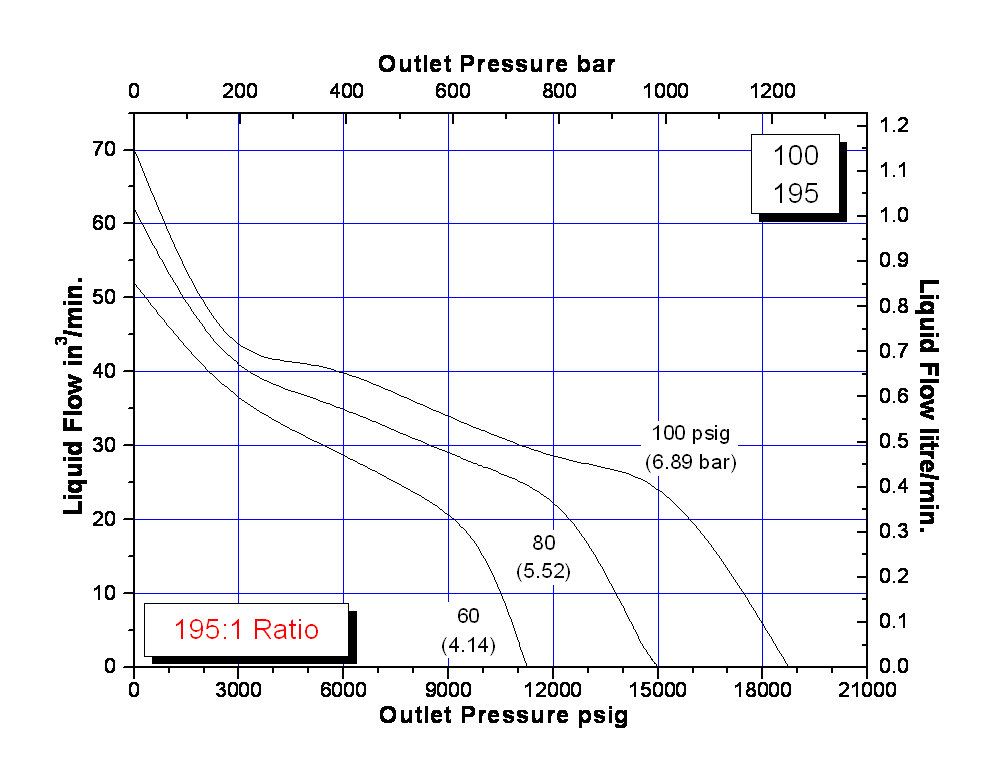

D5 Series Model (Ratio)	10-5 Series Model	Hydraulic Piston Diameter (in)	Hydraulic Piston Area (in2)	Volume per Stroke (in3)	Air Pressure (PSI)
D5 Series Model (Ratio)	10-5 Series Model	Hydraulic Piston Diameter (in)	Hydraulic Piston Area (in2)	Volume per Stroke (in3)	10	20	30	40	50	60	70	80	90	100
5	003	2.375	4.43	5.54	30	75	130	175	220	270	320	370	415	465
10	005	1.625	2.07	2.59	80	180	285	385	490	590	690	795	900	1000
12	007	1.5	1.77	2.21	90	200	340	450	560	700	850	980	1100	1225
20	010	1.1875	1.11	1.39	145	330	525	700	925	1100	1300	1500	1700	1900
25	015	1	0.785	0.981	200	475	750	1000	1300	1550	1800	2000	2350	2625
30	018	0.9375	0.689	0.861	225	525	875	1150	1500	1775	2050	2350	2700	3075
35	020	0.875	0.601	0.751	250	600	1000	1400	1775	2125	2475	2825	3200	3625
55	030	0.6875	0.371	0.464	400	1000	1700	2200	2900	3400	4000	4600	5200	5800
70	040	0.625	0.307	0.384	500	1175	1950	2600	3350	4100	4900	5600	6350	7000
85	045	0.5625	0.248	0.31	800	1700	2600	3400	4400	5100	6000	6900	7800	8600
105	060	0.5	0.196	0.245	900	2000	3150	4200	5400	6400	7450	8500	9700	10700
140	080	0.4375	0.15	0.188	1100	2400	3900	5400	6900	8300	9800	11200	12600	14000
195	100	0.375	0.11	0.138	1400	3250	5250	7250	9250	11250	13250	15000	17000	18750
280	160	0.3125	0.077	0.096	2250	4000	7750	10500	13500	16250	18750	21500	24500	27500
440**	250**	0.25	0.049	0.061	5000	8000	12500	16500	21000	25500	30000	34000	38000	42500
555**	350**	0.2187	0.038	0.048	6250	12500	18750	25000	31250	37500	43750	47500	51250	55000
