L4系列增压泵
发布时间: 2019-06-05 14:39
L4系列增压泵 常用型号10-4000W003,10-4000W005,10-4000W010,10-4000W015,10-4000W020,10-4000W030,10-4000W050,10-4000W080,10-4000W125

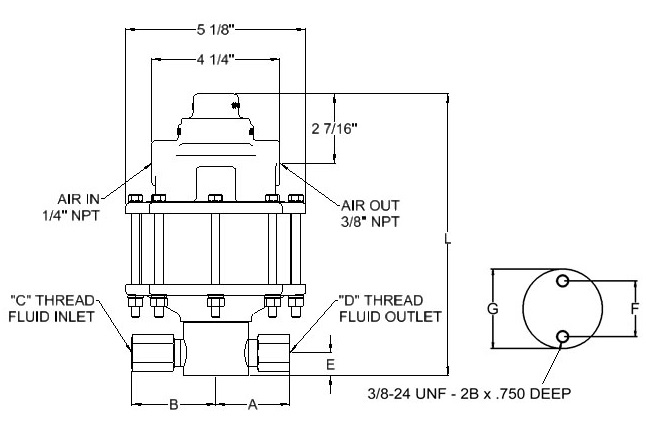

10-4 Series
Model
| L
| A
| B
| NPT (Standard)
| E
| F
| G
|
C Thread
| D Thread
|
003
| 11.375
| 2.438
| 3
| 1/2"
| 3/8"
| 0.813
| 1.5
| 2.125
|
005
| 11.188
| 2.438
| 3
| 1/2"
| 3/8"
| 0.813
| 1.5
| 2.125
|
010 thru 015
| 11.063
| 2.438
| 2.438
| 3/8"
| 3/8"
| 0.813
| 1.5
| 2.125
|
020 thru 030
| 10.063
| 2.438
| 2.438
| 3/8"
| 3/8"
| 0.813
| 1.5
| 2.125
|
050 thru 125
| 10.500
| 2.375
| 2.313
| 3/8"
| 3/8"
| 0.813
| 1.5
| 2.125
|
165
| 10.752
| 1.993
| 2.062
| 3/8"
| 9/16-18*
| 1.000
| 1.5
| 2.500
|
*Coned and Threaded Hight Pressure Connection for
1/4" O.D. Tubing
10-4
Series
Model
| Ratio
| Hydraulic
Piston
Diameter
(in)
| Hydraulic
Piston
Area (in2)
| Volume
per
Stroke
(in3)
| Air Pressure (PSI)
|
10
| 20
| 30
| 40
| 50
| 60
| 70
| 80
| 90
| 100
|
003
| 5
| 1.625
| 2.07
| 2.59
| 35
| 90
| 145
| 200
| 250
| 305
| 360
| 415
| 465
| 515
|
005
| 10
| 1.1875
| 1.11
| 1.39
| 80
| 180
| 280
| 375
| 475
| 575
| 675
| 770
| 870
| 965
|
010
| 15
| 0.875
| 0.601
| 0.751
| 160
| 340
| 520
| 700
| 880
| 1060
| 1240
| 1440
| 1600
| 1800
|
015
| 30
| 0.6875
| 0.371
| 0.464
| 250
| 550
| 850
| 1150
| 1425
| 1725
| 2000
| 2300
| 2575
| 2850
|
020
| 35
| 0.625
| 0.307
| 0.384
| 300
| 675
| 1050
| 1450
| 1800
| 2175
| 2525
| 2875
| 3225
| 3550
|
030
| 55
| 0.5
| 0.196
| 0.245
| 500
| 1040
| 1620
| 2200
| 2750
| 3340
| 3850
| 4475
| 5000
| 5550
|
050
| 100
| 0.375
| 0.11
| 0.138
| 950
| 1850
| 2900
| 3800
| 4850
| 5900
| 6875
| 7900
| 8900
| 9900
|
080
| 140
| 0.3125
| 0.077
| 0.096
| 1300
| 2700
| 4150
| 5700
| 7100
| 8600
| 9900
| 11200
| 12600
| 14000
|
125
| 220
| 0.25
| 0.049
| 0.061
| 2100
| 4400
| 6750
| 8750
| 11250
| 13250
| 15250
| 17500
| 19750
| 22000
|
165
| 300
| 0.2180
| 0.037
| 0.047
| 3400
| 6000
| 8500
| 12400
| 14600
| 17000
| 20900
| 23500
| 26900
| 29500
|

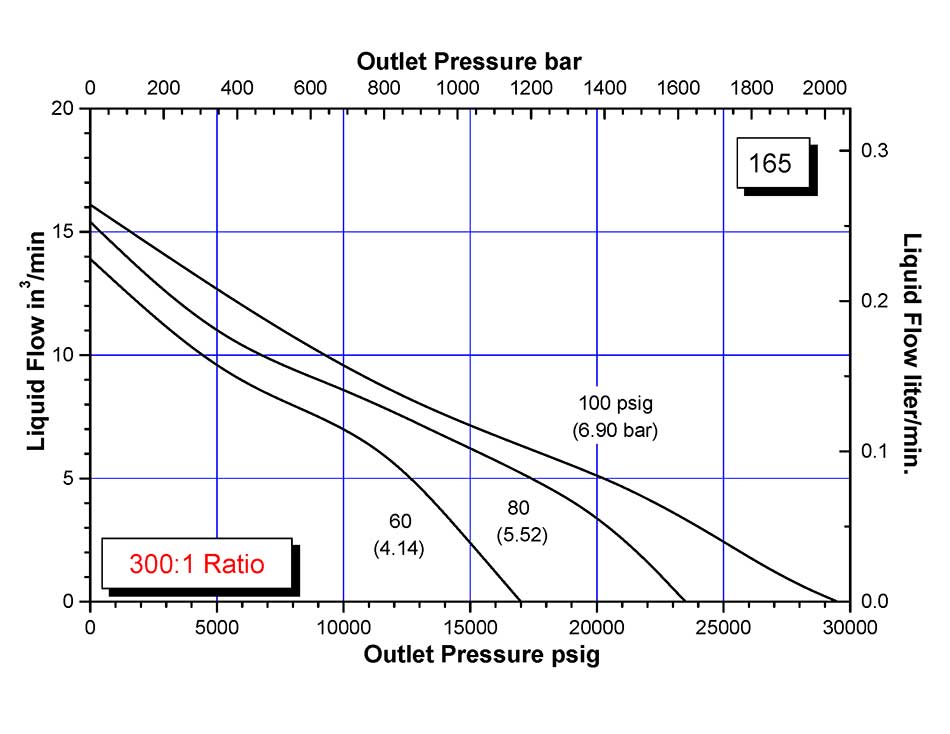

PERFORMANCE CHART
