MODEL SELECTION CHART

Model No.

Maximum Rated
Air Supply (Ps)

Maximum Rated
Air Outlet (Po)

Connection Ports

Static Outlet
Stall Pressure

Actual Area
Ratio

Displacement
Per Stroke
(in3 per cycle)

Air Drive

Air Inlet

Air Outlet

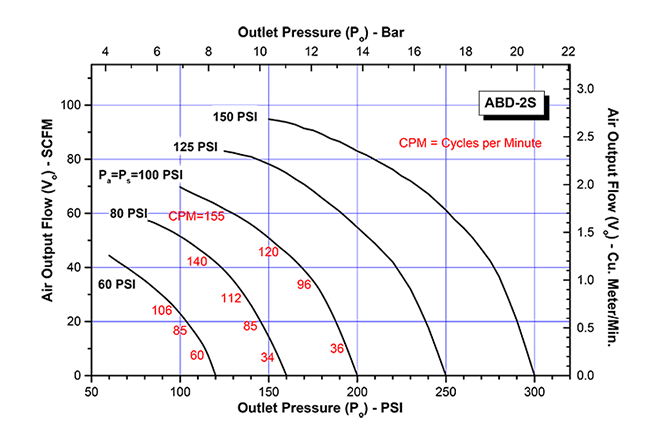

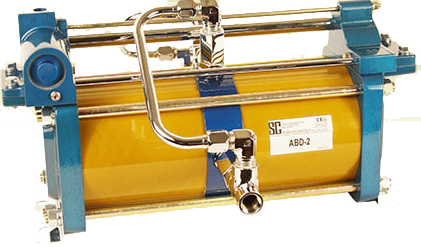

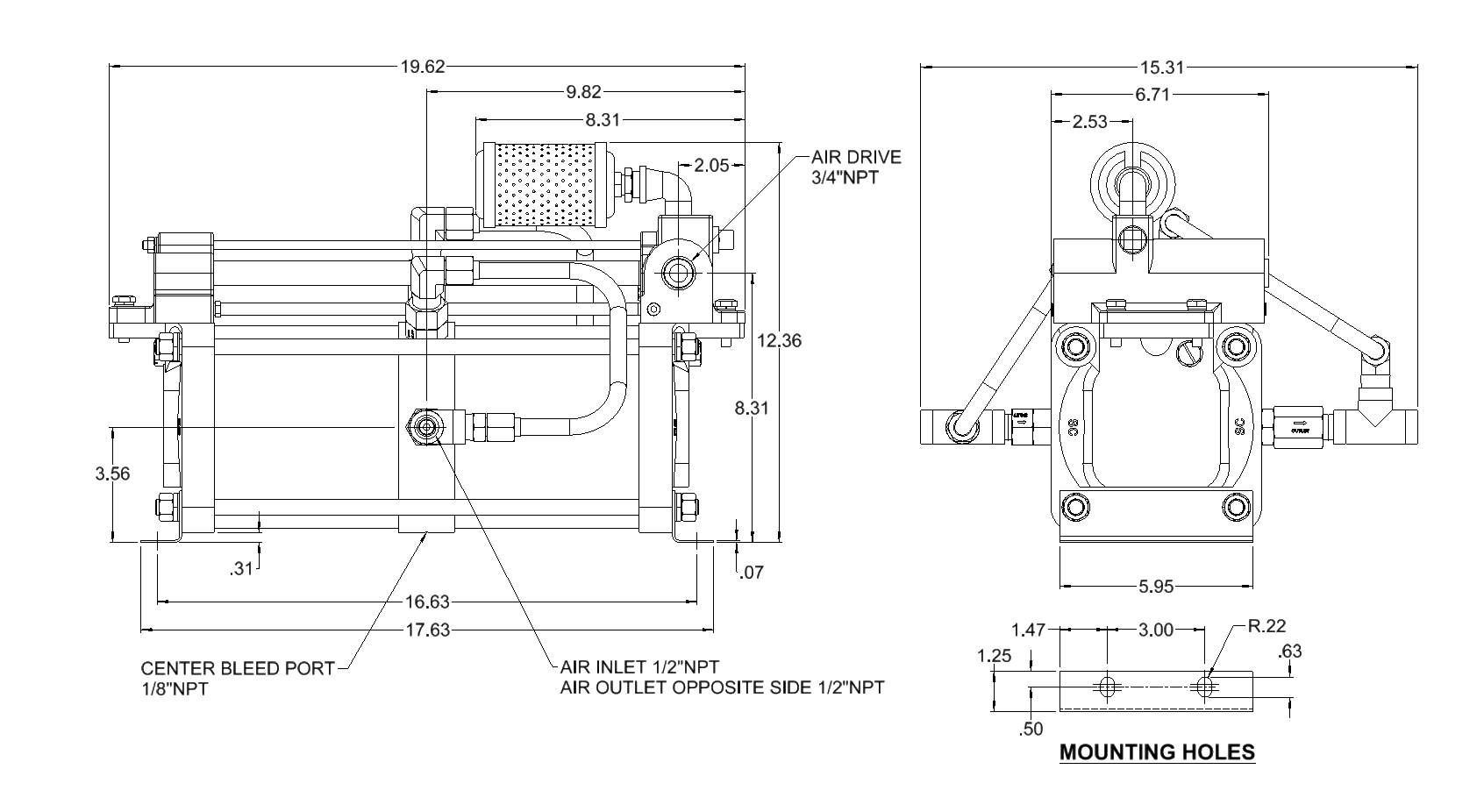

ABD-2 & ABD-2S

150 psig

300 psig

3/4" NPT

1/2" NPT

1/2" NPT

Pa + Ps

2:01

223

10.3 bar

21 bar

ABD-5

150 psig

855 psig

3/4" NPT

1/2" NPT

1/2" NPT

4.7 Pa + Ps

4.7:1

28.2

10.3 bar

59 bar

M202 - Remote Pilot:These models  utilize dual seals in the hydraulic assembly with a bleed-off between the  seals to atmosphere, thus providing a visual indication of hydraulic seal  leakage. Used where contamination of the air motor from the hydraulic fluid  being pumped is objectionable.

M205 - Cooling Jacket: The  "B" models have a bottom inlet connection for convenient tank top  installation or alternate mounting configuration.
