Model No.

Maximum Material
Rated Gas Supply
Pressure (Ps)

Maximum Material
Rated Gas Outlet
Pressure (Po)

A Inlet Port
B Outlet Port

Static Outlet
Stall Pressure

Minimum Inlet
Gas Pressure (Ps)

Displacement
Per Stroke
(in3 per cycle)

GBD-5

1500 psig

1500

1/2" NPT

4.7 Pa +Ps

25 psig

28.2

103 bar

103 bar

1/2" NPT

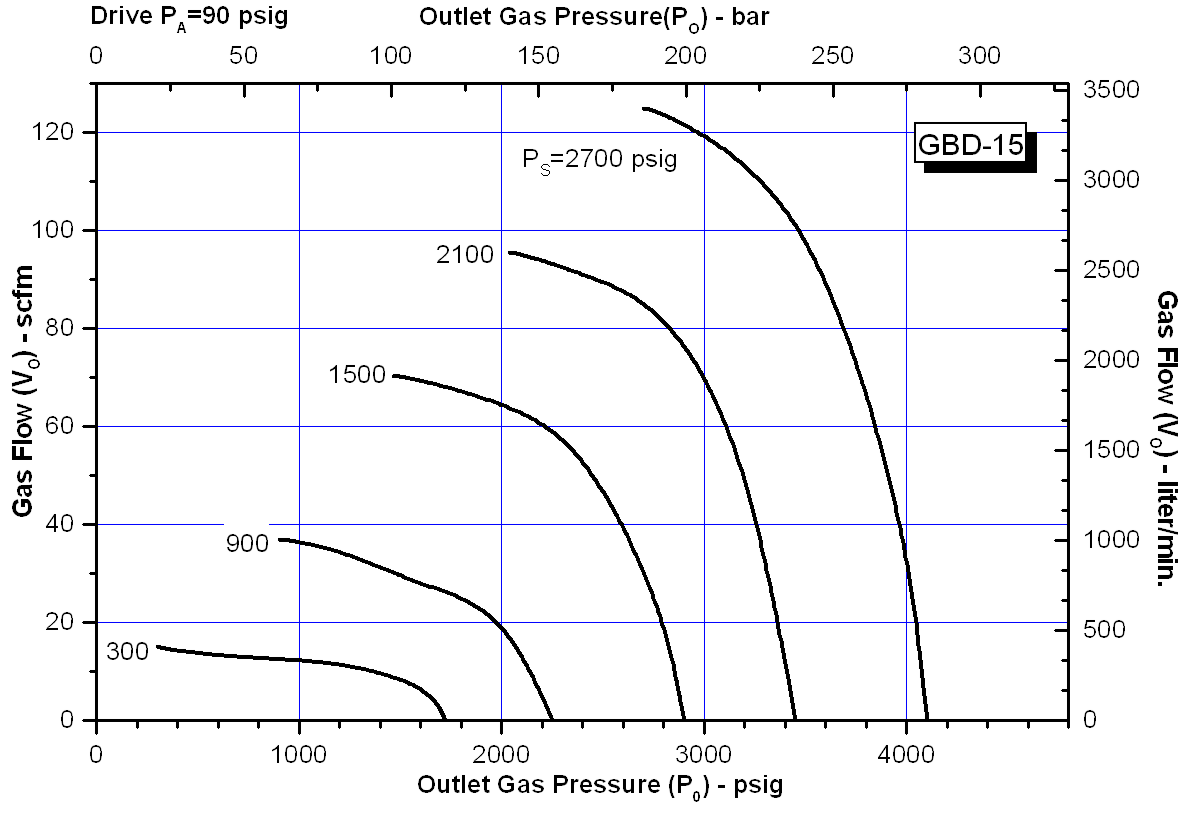

GBD-15

5,000 psig

5,000 psig

1/4" NPT

15 Pa + Ps

50 psi (3.5 bar)

14.1

345 bar

345 bar

1/4" NPT

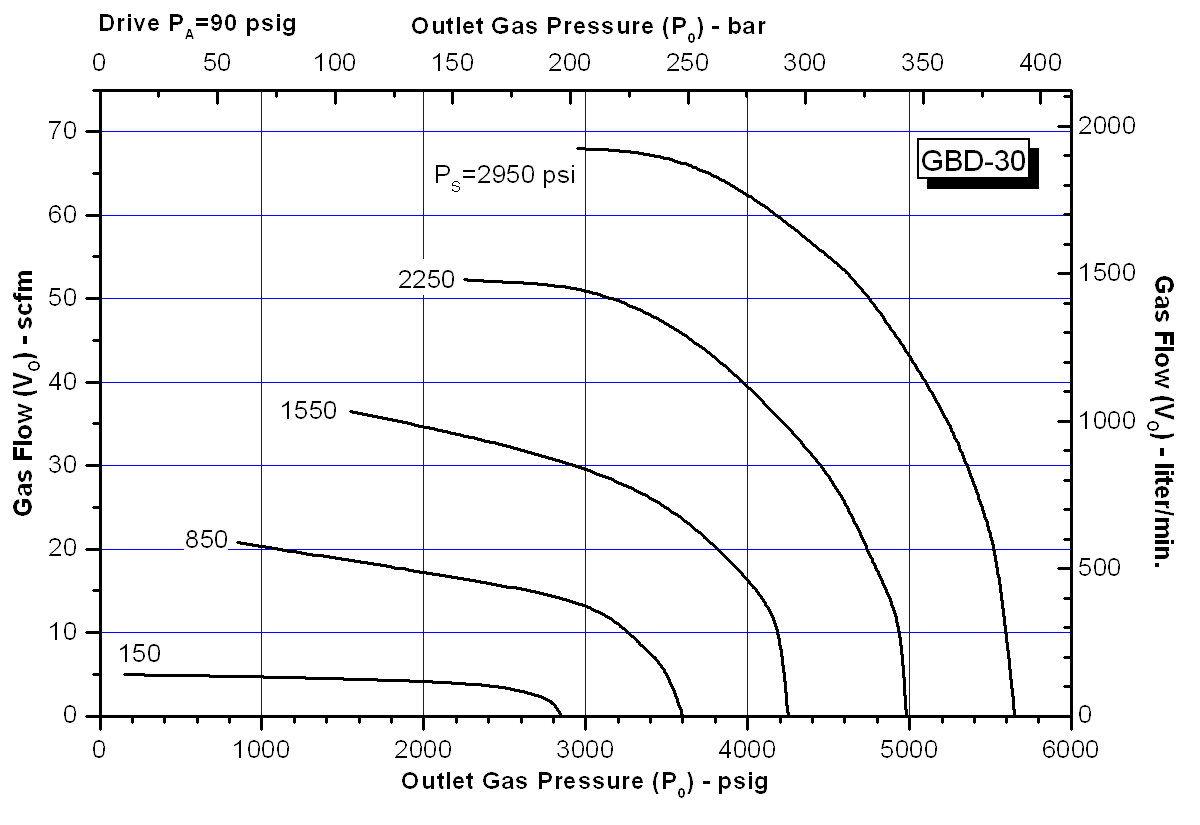

GBD-30

6,000 psig

9,000 psig

1/4" NPT

30 Pa + Ps

100 psig (7 bar)

6.3

410 bar

620 bar

1/4" NPT

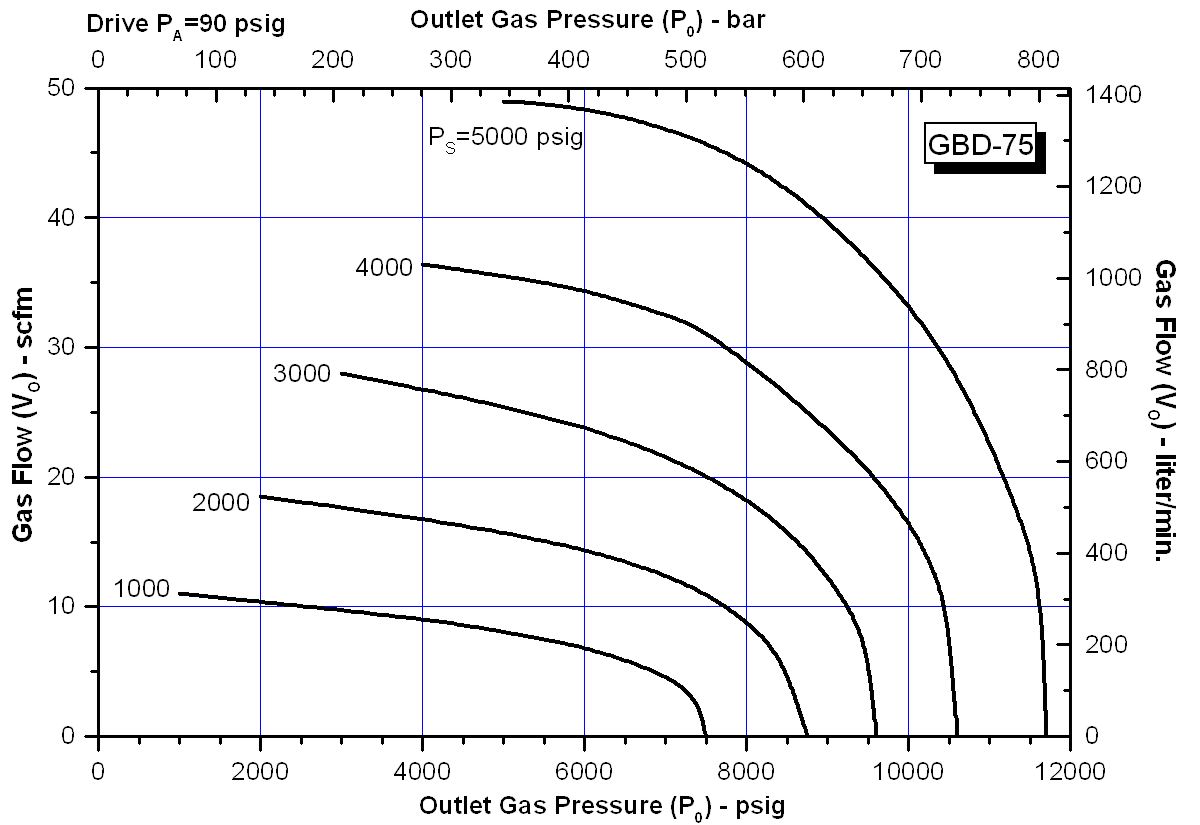

GBD-75

6,000 psig

20,000 psig

9/16"-18 (1)

75 Pa + Ps

250 psig (17 bar)

2.4

410 bar

1,380 bar

9/16"-18 (1)

M014 - Counter Port: This option  provides a 5/8-18-UNF thread port on the air motor section of the pump for  installing a mechanical cycle counter.

M402 - Remote Pilot: This option provides a 1/8'' NPT female port for remotely controlling  the start/stop of the pump by connecting an external air signal to actuate  the air cycling valve.
